JST to AUX Audio jack Break out - Haslab Proton Pack/Spirit Halloween 2023

JST to AUX Audio jack Break out - Haslab Proton Pack/Spirit Halloween 2023

Regular price $13.13 USD
Regular price Sale price $13.13 USD
Sale Sold out
MAKE
-Custom made JST to Audio AUX Jack PCB
-Select if you are buying for the haslab or for the spirit pack

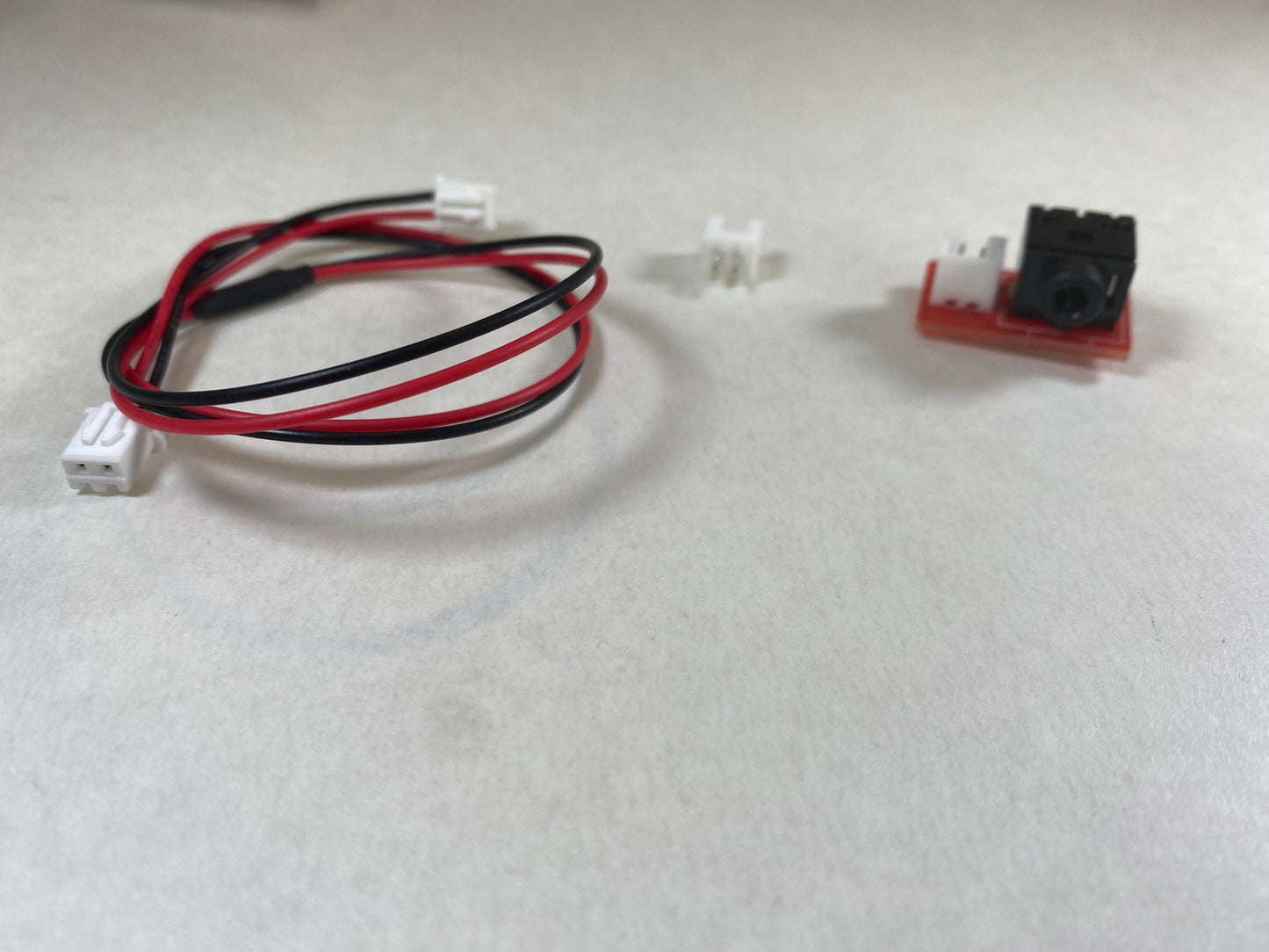

Includes:
-PCB
-Jumper male 2 male (Haslab) or pigtail to male (Spirit)
-Female port that will need to be soldered into SPKR 0 (If you have the haslab)

Install: (HASLAB)
(Very little soldering is needed.)
-Take the backing off the proton pack.
-Unscrew the circuit board and unplug it from all connections except the volume knob and the speaker1
-Solder port to main board on SPK0. (You must remove the Haslab board to do this) *At your own risk*
-Direction doesn't matter but there is an outline in white that it should sit in.
-Reassemble the main board
-Plugin the jumper into the main board and the Audio board
-Plug your speaker or amplifier into
-Congrats now go bust some ghosts!
**NOTE*** Some are reporting distortion from the pack, and this is being caused by the high output in volume from the Haslab pack and can be fixed with this cable. https://a.co/d/crIFJLE

Install: (SPIRIT)
(Very little soldering is needed.)
-Remove the pack's MDF packing
-Unscrew the Cyclotron top PCB
-Unsolder the original speaker
-Sodler in the bare wires of the JST pigtail
-Plug it into the JST2AUX board
-Plug your speaker or amplifier into it
-Congrats now go bust some ghosts!


NOTE: You will have to provide your own AUX cable to connect




Note to buyer:
- You will receive a shipping notification with tracking number once your order ships.
- If you have any questions please message us prior to placing your order.
- Once we place your order in progress we cannot cancel your order.
- Verify that shipping address is entered correctly prior to placing order. Imperial Tech Shop is not responsible for items being shipped incorrectly. If order is returned to Imperial Tech Shop for any reason relating to incorrect address or failure to pick up package from shipped location, the customer will be responsible for paying to reship item.
- By placing order you are certifying that you have read the description fully and understand what is being ordered and agree with the terms and policies of our shop.

Return policy:
Refunds cannot be provided once orders are processed as this is a custom made item. Exchanges are only accepted when a mistake was made on behalf of Imperial Tech Shop. In the event that an item was made incorrectly by Imperial Tech Shop, the order will be remade as ordered and shipped to the customer. Customers may asked to provide a photo for exchange/remake consideration and receive a shipping label to return the item.

Materials: pcb
