ATAT Driver/Pilot LED Chest Box Light Kit V1.3
ATAT Driver/Pilot LED Chest Box Light Kit V1.3
Regular price
$45.00 USD
Regular price
Sale price
$45.00 USD
Unit price
/
per
Couldn't load pickup availability
***LED KIT ONLY***NO ARMOR***
Overview:
This is a universal kit to be used in AT-AT pilot chest boxes. It can be used in other capacities like Logic for a droid but not its original intention but we have seen it done. This is the 3rd version we come out with and the updates and features are listed below.
- USB/Lipo powered
- On board Lipo charging
- 3 Modes to pick from
- Easter egg
- On/off/on switch to pick between USB, Charge, or Lipo.
- 3 Brightness settings
- Speed setting
- Expansion spot for a 4 pin JST to allow for an I/O pin and also the continuation of the 11 LEDs
○ This is meant for someone who would like to reprogram and use this for something else. This is not supported by Imperial tech shop. So you are on your own if you do make a change.
Contents:
1 x PCB board
12 x White lenses
1 x Tinted Lens
3 x Screws/nuts

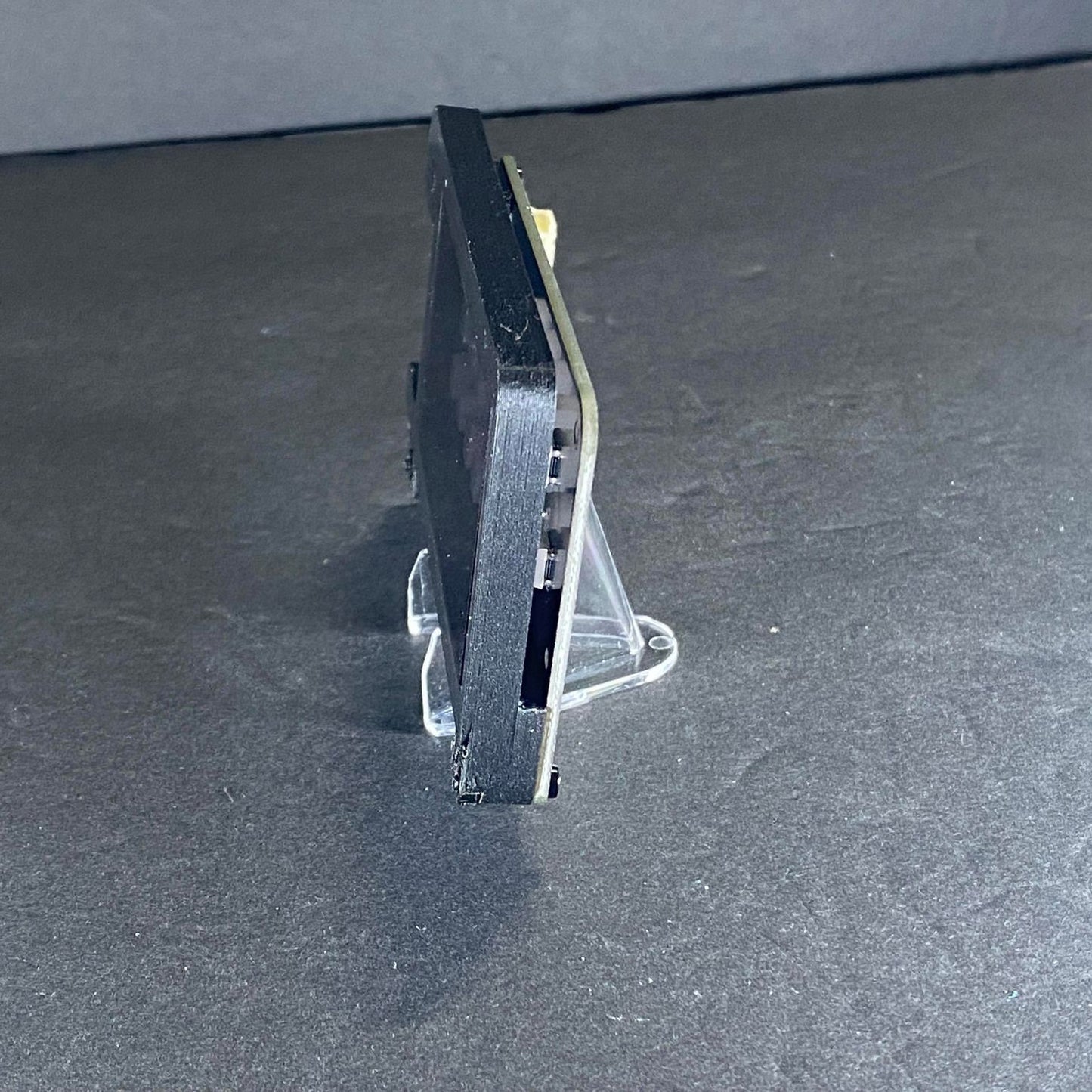

1 x 3D printed bracket
Instructions:
Peel the acrylic and stick to the leds. You have 12 white pieces, meaning you have 11 +1 spare. Then clean the 3d Print and remove any possible supports left over. Clear the holes with a small drill bit if needed but just by pushing it through the hole. No need to drill it with an actual drill. Pressure fit the nut and then mount and screw the board. Once all together peel the Tinted acrylic and pressure fit into the bracket and then mount the full assembly into the box. How you mount is up to you. Just make sure to not get glue onto the acrylic as it will ruin it.
Materials:
PLA (Black)
Frosted clear Acrylic
Size:
Bracket Dimensions: 95.69mm x 53.6mm
Board Dimensions: 86.82mm x 49.05mm
Weight: ~4oz.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Note to buyer:
- You will receive a shipping notification with tracking number once your order ships.
- If you have any questions please message us prior to placing your order.
- Once we place your order in progress we cannot cancel your order.
- Verify that shipping address is entered correctly prior to placing order. Imperial Tech Shop is not responsible for items being shipped incorrectly. If order is returned to Imperial Tech Shop for any reason relating to incorrect address or failure to pick up package from shipped location, the customer will be responsible for paying to reship item.
- By placing order you are certifying that you have read the description fully and understand what is being ordered and agree with the terms and policies of our shop.
Return policy:
Refunds cannot be provided once orders are processed as this is a custom made item. Exchanges are only accepted when a mistake was made on behalf of Imperial Tech Shop. In the event that an item was made incorrectly by Imperial Tech Shop, the order will be remade as ordered and shipped to the customer. Customers may asked to provide a photo for exchange/remake consideration and receive a shipping label to return the item.
Materials: pcb fiber glass and leds
